Compound Fitting
A Compound Floor Fitting (CMPFI) can own a number of sub-compound fittings. Components owned by the compound fitting can be modified as a group. For example, if a table is created as a compound fitting, chairs can be created as sub-compound fittings owned by the table. If the table position is changed the chairs move with it.
In the model explorer or in the 3D view, select the wall where the fittings are to be positioned as the CE.
On the
WALLS AND FLOORS
tab, from the
Create
group, select
Compound Floor Fitting
from the drop-down list
to display the

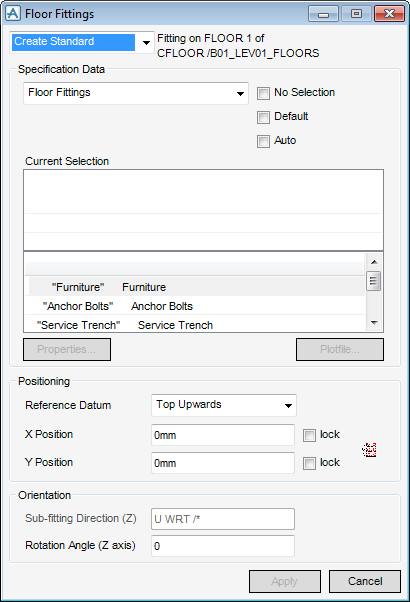

Floor Fittings
window. By default,
Create Compound
is selected.
The functionality available is identical to Floor Fittings, for more information refer to
Create Floor Fittings
.
