Measure Distance between two Points
To measure the distance between two points, on the Draw tab, in the Measure group, click Distance.
The user is then prompted to Specify the first point
Input values in the dimension fields and press Enter or click to identify the point to measure from.
The user is then prompted to Specify the second point
Input values in the dimension fields and press Enter or click to identify the point to measure to.

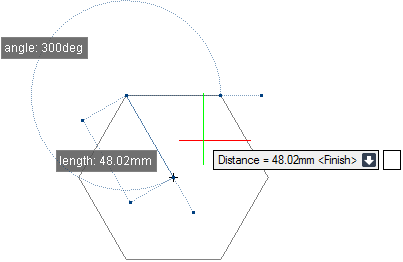

The context editor displays the distance between the two points.
The distance and angle also displays on the message bar along with the Delta X and Delta Y values.
Input F at the prompt and press Enter to end the command.
