Add and Modify Drawing Objects : Add Drawing Objects : Draw Hexagons
To draw a hexagon with a specified radius from the centre to one of its points, on the Draw tab, in the Draw group, click Hexagon End-Point, select Hexagon End-Point from the drop-down list.
Alternatively, on the Home tab, in the Draw group, click Circle Centre-Radius, select Hexagon End-Point from the drop-down list.
The user is prompted Specify the centre point or <Diameter>
Input values in the dimension fields and press Enter or click to identify the centre point of the hexagon.

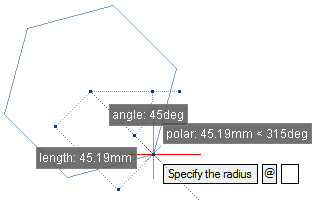

The user is then prompted to Specify the radius
Input a value in the dimension field and press Enter or click to identify a corner of the hexagon.
Throughout the hexagon creation process the user can press ESC to cancel the command. Additional functionality is also available.
 |
|
|
Press the down arrow key and select Diameter to draw a hexagon with a specified point to point diameter. Refer to Draw Hexagon with Specified Point to Point Diameter for further information.
|
|
|
Press the down arrow key and select Median to draw a hexagon with a specified radius from the centre to one of its sides. Refer to Draw Hexagon with Specified Centre to Side Radius for further information.
|
|
To draw a hexagon with a specified point to point diameter, on the Draw tab, in the Draw group, click Hexagon End-Point, select Hexagon Two-Points from the drop-down list.
Alternatively, on the Home tab, in the Draw group, click Circle Centre-Radius, select Hexagon Two-Points from the drop-down list.
The user is prompted to Specify the first vertex or <Radius>
Input values in the dimension fields and press Enter or click to identify the first corner of the hexagon.

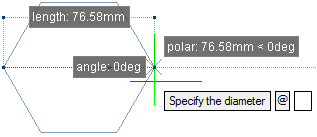

The user is then prompted to Specify the diameter
Input a value in the dimension field and press Enter or click to identify the opposite corner of the hexagon.
Throughout the hexagon creation process the user can press ESC to cancel the command. Additional functionality is also available.
 |
|
|
Press the down arrow key and select Median to draw a hexagon with a specified radius from the centre to one of its sides. Refer to Draw Hexagon with Specified Centre to Side Radius for further information.
|
|
|
Press the down arrow key and select Radius to draw a hexagon with a specified radius from the centre to one of its points. Refer to Draw Hexagon with Specified Centre to Point Radius for further information.
|
|
To draw a hexagon with a specified radius from its centre to one of its sides, on the Draw tab, in the Draw group, click Hexagon End-Point, select Hexagon Edge from the drop-down list.
The user is prompted to Specify the centre point or <Diameter>
Input values in the dimension fields and press Enter or click to identify the centre point of the hexagon.

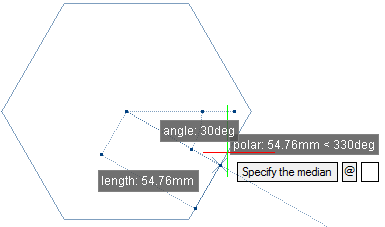

The user is then prompted to Specify the median
Input a dimensional value in the field and press Enter or click to identify the median (the distance from the centre to the mid-point of one of the vertices).
Throughout the hexagon creation process the user can press ESC to cancel the command. Additional functionality is also available.
 |
|
|
Press the down arrow key and select Diameter to draw a hexagon with a specified point to point diameter. Refer to Draw Hexagon with Specified Point to Point Diameter for further information.
|
|
|
Press the down arrow key and select Radius to draw a hexagon with a specified radius from the centre to one of its points. Refer to Draw Hexagon with Specified Centre to Point Radius for further information.
|
|
