User-Defined Linear Styles

DRAW User Guide

Create Drawing Sheets and Support Elements : Modify Department Attributes : User-Defined Linear Styles

To select a user-defined linear style for the department, on the Department Attributes window, click Select to display the User-defined linear styles window.

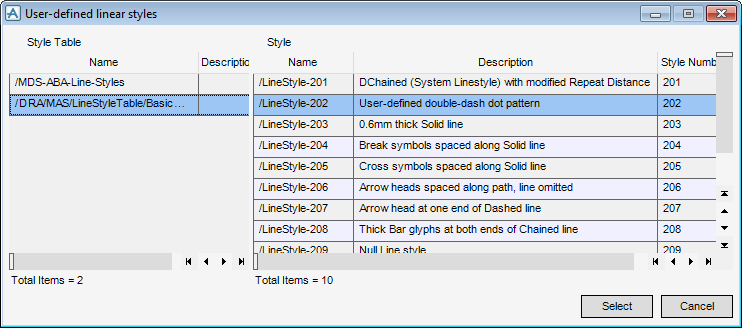

The User-defined linear styles window allows the user to select a user-defined line style from a list of available Style Tables and a list of available Styles.

The left-hand part of the User-defined linear styles window displays a list of available Style Tables. Select a row to change the display of the List of available Styles.

The right-hand part of the User-defined linear styles window displays a list of available styles. Select a row to be used as the line style.


	Click to scroll to the left side of the currently selected list.
	Click to scroll to the left of the currently selected list.
	Click to scroll to the right of the currently selected list.
	Click to scroll to the right side of the currently selected list.
	Click to scroll to the top of the currently selected list.
	Click to scroll up the currently selected list.
	Click to scroll down the currently selected list.
	Click to scroll to the bottom of the currently selected list.

Click Select to apply the user-defined line style or Cancel to discard any changes and close the User-defined linear styles window. The user is returned to the Department Attributes window.
