Modify Department Attributes
When a department is created, default attributes are applied. The user can modify the default department attributes.

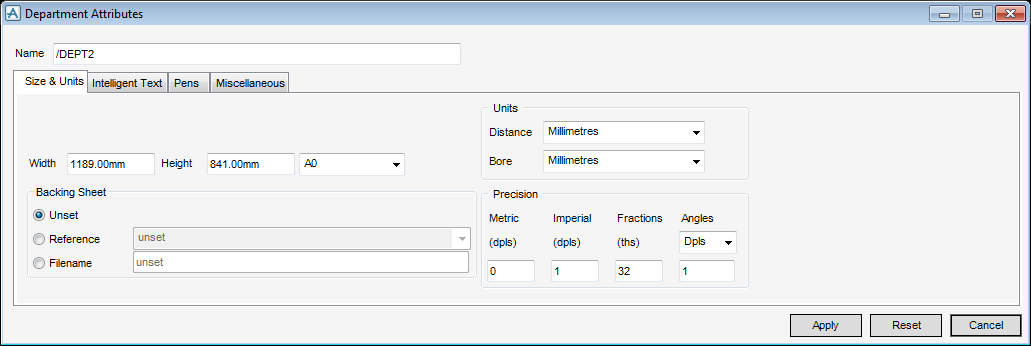

To modify the currently selected department attributes, on the Tools tab, in the Explorers Group, click Department, select Modify from the drop-down list to display the Department Attributes window.
The Department Attributes window allows the user to specify a number of attribute settings for the department. Refer to:
•
Size and Units
•
Intelligent Text
•
Pens
•
Miscellaneous
The department name displays at the top of the Department Attributes window.
