Isometric Drawings Production
: Log File
Log File
During the creation, update or regeneration process, the application passes through several stages, any of which can encounter errors. As a result, a Log File is produced.
To open a Log File after processing, on the
Auto
tab, in the
Isometric Tools
group, click
Log

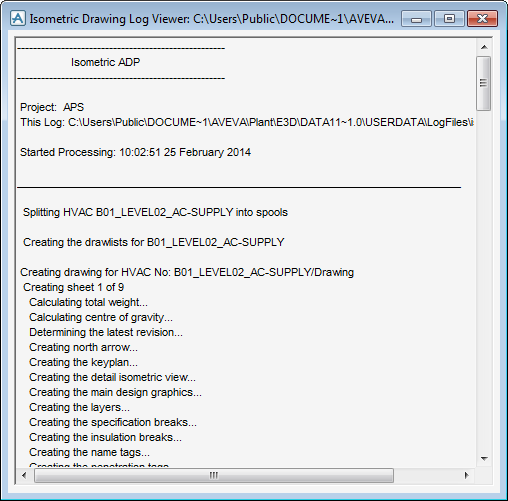

to display the
Isometric Drawing Log Viewer
window.

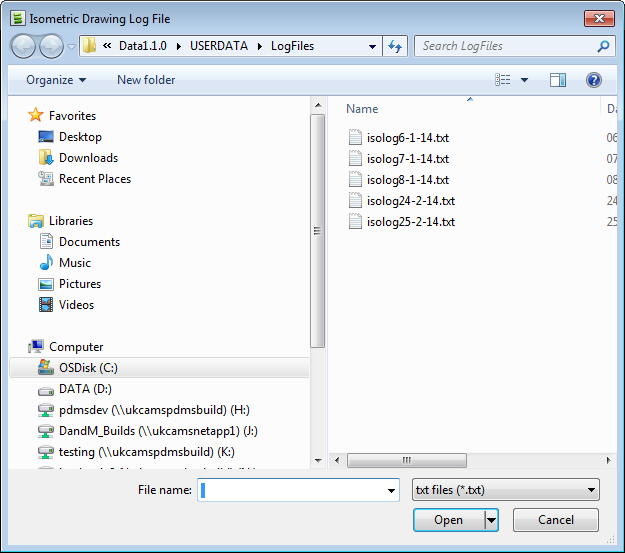

If Design elements have not been processed during the current session, a window displays, allowing the user to browse for existing Log Files.
