DRAW User Guide
General Automatic Drawing Production : Modify General ADP View : Update View
Update View

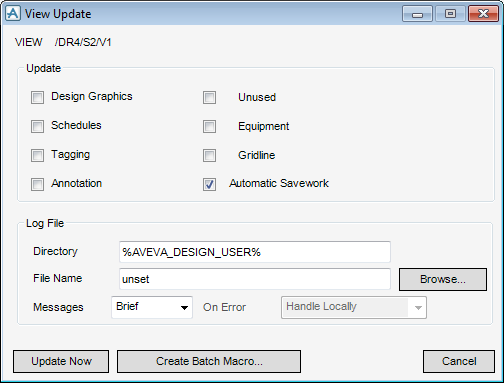

To update selected view elements, on the Modify General ADP View window, click Update to display the View Update window.
The View Update window allows the user to define the elements to be updated and specify the log file settings.
Update
Select the check boxes to define the view elements to be updated. The elements available for selection are:
•
Design Graphics
•
Schedules
•
Tagging
•
Annotation
•
Unused
•
Equipment
•
Gridline.
Note:
By default, the Automatic Savework check box is selected.
Log File

Directory
Input a value in the field to modify the location of the log file.
File Name
Input the file name or click Browse to navigate to the required folder.
Messages
Select from the drop-down list to define the number of messages to be written to the log file. The options available are Debug, Full, Brief or Summary. Debug is very verbose, and is primarily intended to help developers to investigate any issues with the translation of particular files. If Debug is selected, the On Error drop-down list become active.
On Error
Select from the drop-down list to define the action to be taken when an error occurs in Debug mode.
Select Handle Locally for DRAW to log the error and attempt to continue the view update.
Select Stop Processing for DRAW to end the update process if an update error is found.
Create Batch Macro
Allows the user to associate a batch macro file with the drawing view. Refer to Create Batch Macro for further information.
Click Update Now to update the ADP view, messages appear on the Status Bar detailing information about the creation process, which can take a few minutes. The user is returned to the Modify General ADP View window.
