Define View Frame with Cursor

DRAW User Guide

General Automatic Drawing Production : Modify General ADP View : Define View Frame with Cursor

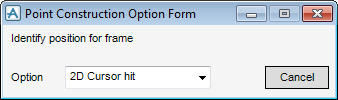

To define the frame position for the ADP view with the cursor, on the Modify General ADP View window, click Cursor to display the Point Construction Option Form window.

The Point Construction Option Form window allows the user to position the frame using a cursor pick in the view.


2D Cursor hit	Select from the drop-down list to position the frame using a cursor pick on the drawing view. The user is prompted to Specify position Click to identify the centre point of the of the frame.
End point of	Select from the drop-down list to position the centre of the frame using a specified end point. The user is prompted to Specify position Click to identify the centre point of the of the frame.
Centre point of	Select from the drop-down list to position the centre of the frame using a specified centre point. The user is prompted to Specify position Click to identify the centre point of the of the frame.
Mid point of	Select from the drop-down list to position the centre of the frame using a specified mid point. The user is prompted to Specify position Click to identify the centre point of the of the frame.
Mid pt between	Select from the drop-down list to position the centre of the frame using a specified mid point. The user is prompted to Specify position Click to identify the centre point of the of the frame.
Intersection at	Select from the drop-down list to position the centre of the frame using a specified intersection. The user is prompted to Specify position Click to identify the centre point of the of the frame.
Inter between	Select from the drop-down list to position the centre of the frame using a specified intersection. The user is prompted to Specify position Click to identify the centre point of the of the frame.
Nearest to	Select from the drop-down list to position the centre of the frame using a specified nearest to point. The user is prompted to Specify position Click to identify the centre point of the of the frame.

Click Cancel to close the Point Construction Option Form window. The user is returned to the Modify General ADP View window.
