Tagging Template Leader Line

DRAW User Guide

Add Annotation : Automatic Tagging : Tagging Template Leader Line

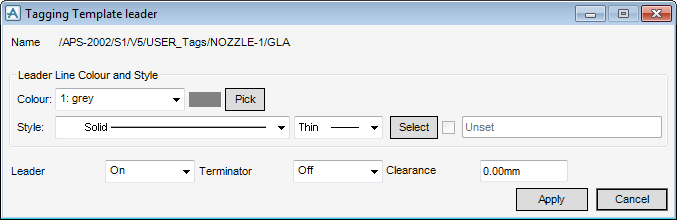

To define the tagging template leader line attributes, on the Automatic Tagging window, select Local from the Template Type drop-down list, select Leader Line from the Attributes drop-down list to display the Tagging Template leader window.


Name	Displays the name of the currently selected element.
Leader Line Colour and Style
Colour	Select from the drop-down list to define the representation colour for the leader line. Alternatively, click Pick to display the Pick a colour window. The functionality of the Pick a colour window is explained, refer to Colour for further information.
Style	Select from the drop-down list to define the leader line style. Alternatively, click Select to display the User-defined styles window. Refer to User-Defined Linear Styles for further information. When a style is selected, it populates the Style field and the check box is selected.
Leader	Select On from the drop-down list to turn the label leader line visibility on. Select Off from the drop-down list to turn the label leader line visibility off.
Terminator	Select from the drop-down list to define the terminator symbol used at the attachment point end of the leader line.
Clearance	Input a value in the field to define the size of the gap between the attachment point and the start of the label leader line.

Click Apply to modify the leader line attributes or Cancel to discard any changes and close the Tagging template leader window.
