Add Copy of Label

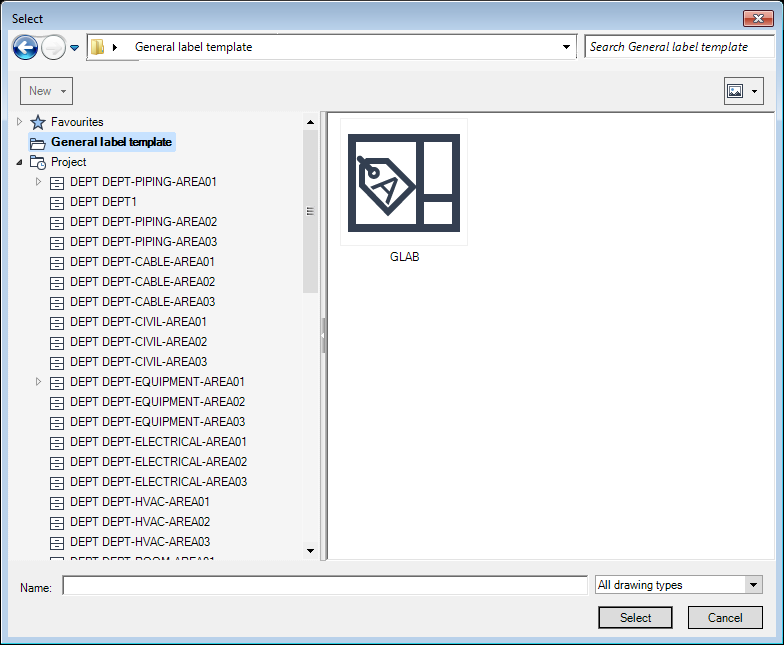

To add a copy of a label, on the Annotate tab, in the Annotate group, click Label to display the Select window:
The Select window allows the user to select the required label template (GLAB) from the GLAB template folder.
Select the required template and click Select.
The user is prompted to Specify attachment point or <Template>
Input S at the prompt and press Enter.
The user is then prompted to Select label element
Click to identify the label to copy.
The user is then prompted to Specify attachment point or <Template>
Click the label leader line attachment point.
The user is then prompted to Select design element
Click to identify the design element to be labelled. A copy of the label is added to the drawing
The process can be repeated, allowing the user to add multiple labels.
Press ESC to end the command.
Throughout the label copy process the user can press ESC to cancel the command. Additional functionality is also available.
Sameas
Press the down arrow key and select Template to select a different label template.
Template
Press the down arrow key and select Sameas to specify a different label to copy.
