Node Attributes

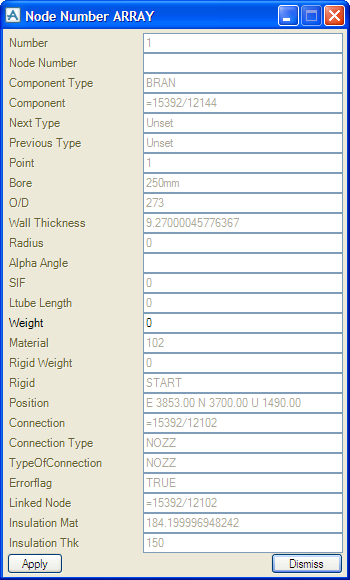

To check the attributes of nodes, select the node and click Node Attributes. The Node Attributes ARRAY window is displayed.
Note:
In this instance, only the weight can be changed as the other attributes are fixed values. Values of zero can be the cause of data inconsistency errors, refer to Check Stress Group for Errors.
To accept the changes, click Apply. To exit the Node Attributes ARRAY window, click Dismiss.
To discard any inputs and close the Node Details window, click Dismiss.
