Pipe Stress Interface
User Guide
Output/Input Tab
: Edit Nodes
Edit Nodes
The user can view and navigate to individual nodes within the selected Stress Group, and change the numbering order if necessary.
Click
Edit Nodes
, the

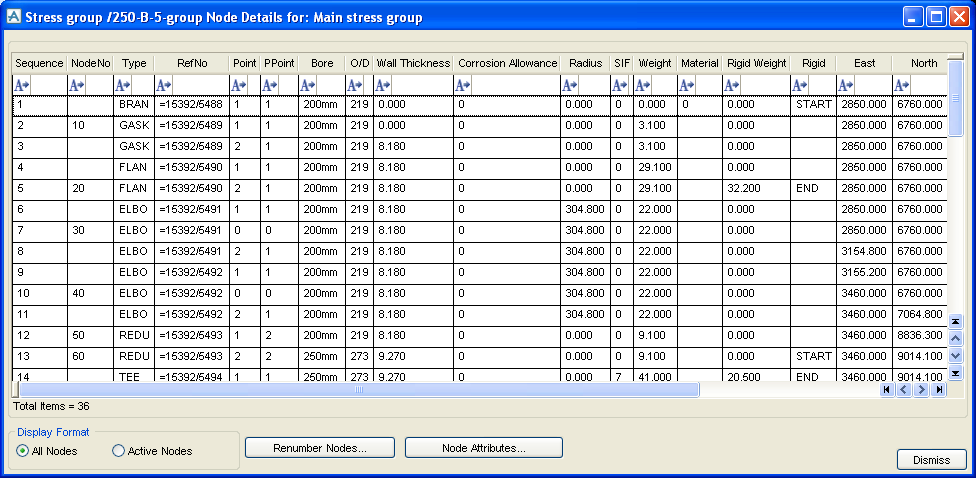

Node Details
window is displayed.
At the bottom left of the
Node Details
window there is a
Display Format
area with two buttons.
All Nodes
displays all node on the form (inactive and active nodes).
Active Nodes
displays active nodes (those nodes with a node number).
To the right of the
Display Format
area are two buttons;
Renumber Nodes
and
Node Attributes
.
