Output/Input Tab : Edit Nodes : Renumber Nodes

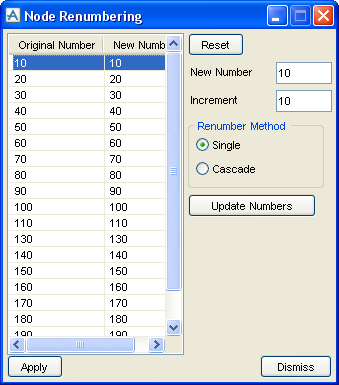

If necessary, to renumber nodes, click Renumber Nodes. The Node Renumbering window is displayed showing the Nodes for the Stress Group in numerical order.
To renumber a Node, it must be highlighted before it can be given a new number in the New Number box. Select Update Numbers to view the changes and select Apply to save the changes.

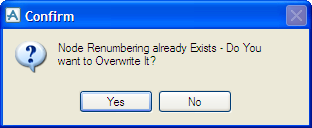

If the user attempts to renumber an existing node, a Confirm window is displayed to allow the user to confirm the action or not. This action will renumber all subsequent nodes according to the increment value in the Increment box.
|
renumbers a single node. Select the appropriate node in the list and enter a new node number in the New Number text box. Select Update Numbers to view the changes and then select Apply to save the changes.
|
|
|
renumbers nodes so that all subsequent nodes are renumbered according to the increment value in the Increment text box. Select Update Numbers to view the changes and then select Apply to save the changes.
|
