Schematic 3D Integrator
User Guide
Integrator Functions in Detail : How Integrator Compares Schematic and 3D Data : Auto Linking Matched Objects

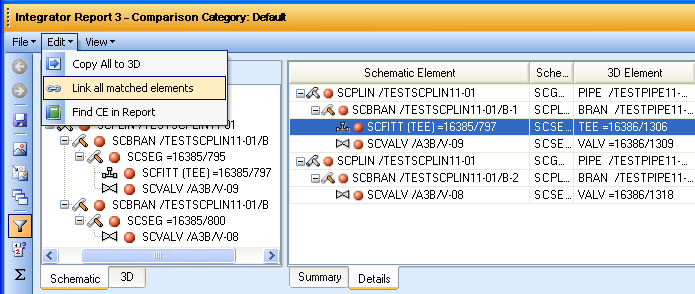

Integrator can automatically link all matched objects from a report. Click on Edit > Link all matched elements.
|
Figure 5:19.
|
|
Figure 5:20.
|

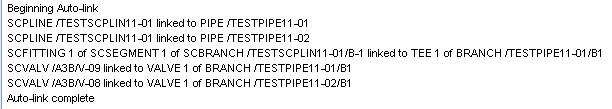

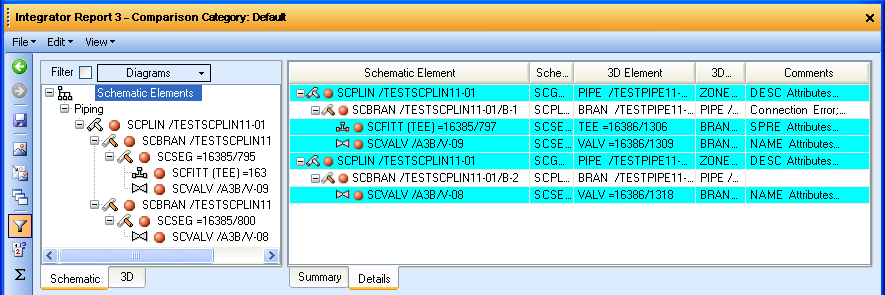

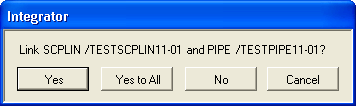

You can choose to link or skip individual objects, or click Yes to All to automatically link all matches. On completion, the report will indicate newly linked objects in cyan and any failed or skipped links in red.
|
Figure 5:21.
|
|
Figure 5:22.
|
