Integrator Functions in Detail : How Integrator Compares Schematic and 3D Data : Drag and Drop onto Compare Report
Drag and Drop onto Compare Report
The Compare Report form supports a drag and drop from the Diagram Viewer or Design Explorer. If the object is dropped on the grid panel and is included in the report, it will be selected in the report form. For the example above, the valve could be dropped onto the form.
The report has a drop site for linking, at the base of the report. An object can be dragged from the drawing viewer, design explorer, or from the report grid panel, and dropped in the drop site. If dragged from the report grid panel, the drag must start on either the Schematic Element cell or the 3D Element cell to determine which object is dragged. A subsequent drop onto the drop site will either replace the object selected for linking, or offer to link to it, depending on the relative types.

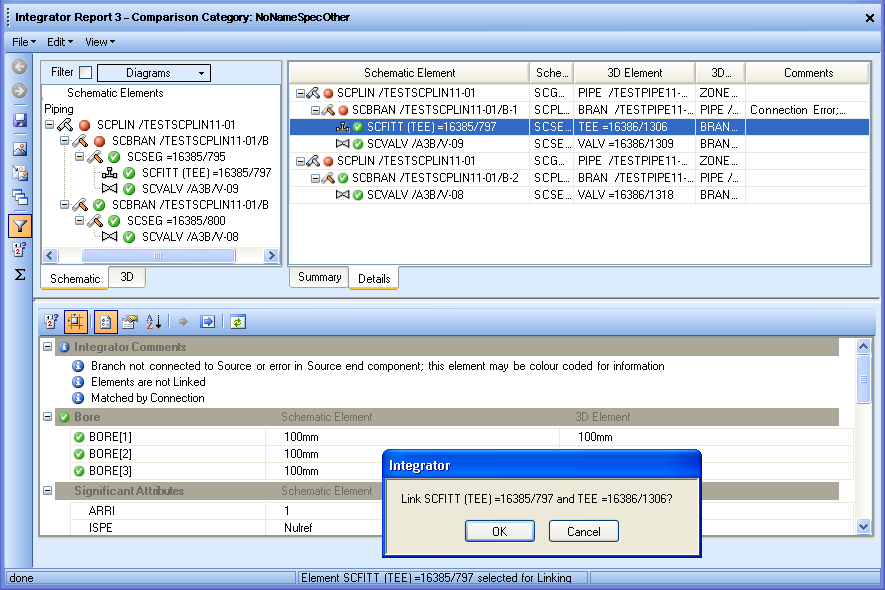

Figure 5:16.
Drop Site for Linking
