Updating an Attribute Value from the Compare Report
When Integrator finds that an attribute value in 3D does not conform to the rules, e.g. when a value has been changed on the diagram but not yet updated to 3D, a drop-down menu is provided in the Data panel to allow the correct value to be used. The example below shows a mismatch in the AREA of an equipment. Select the row with a left mouse click and the attribute comment will be displayed in the status bar below.
Figure 5:12.
Compare Report showing Attribute Value Mismatch

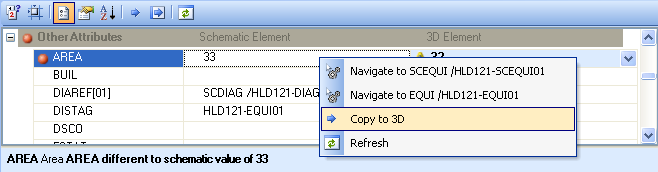

To update the value, first select the row with a left mouse click in the Data panel then right click in the row and select Copy to 3D.
Figure 5:13.
Update Value from Context Menu

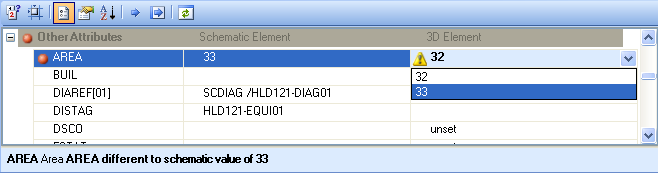

Alternatively, select the correct value from the drop-down menu provided.
Figure 5:14.
Update Value from Drop-down Menu

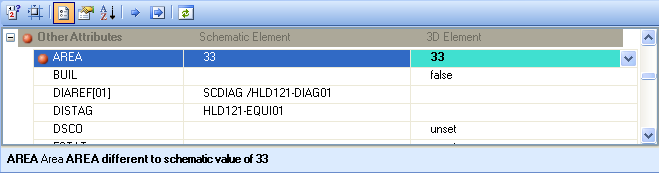

If the update has been completed, the field will turn cyan.
Figure 5:15.
Compare Report showing Update Completed
