Schematic 3D Integrator
User Guide
Integrator Functions in Detail : How Integrator Compares Schematic and 3D Data : Building a Missing Component from the Compare Report

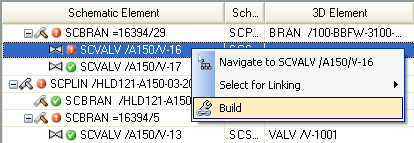

The report Context Menu is available by right clicking on an object or row in the report. The Build option is available on the valve's context menu in the report Grid panel in this example because this valve is missing from the 3D model.
|
Figure 5:10.
|

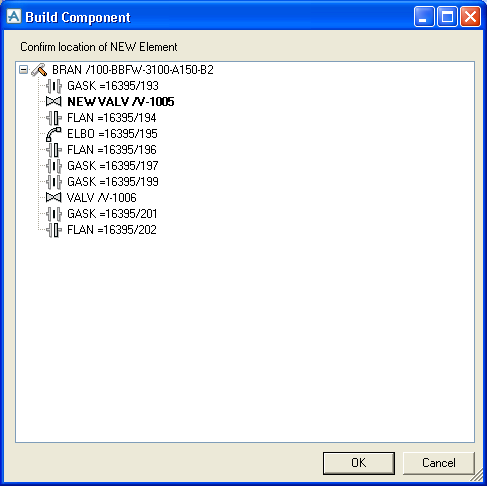

Selecting Build in the valve's context menu will create the component if Integrator can determine its list position. If not then it shows a form listing the components already present in the 3D branch. The user must now select the position in the sequence for the valve to be created by dragging the highlighted NEW VALVE line up or down, using the left mouse button, and then select the OK button.
|
Figure 5:11.
|
