Schematic 3D Integrator User Guide
Integrator Functions in Detail : How Integrator Compares Schematic and 3D Data : Example Compare Report
Example Compare Report
From these example views it is clear that one of the valves is missing from the 3D model. This is confirmed by the Compare Report form. The initial view of the compare report displays the Summary tab.

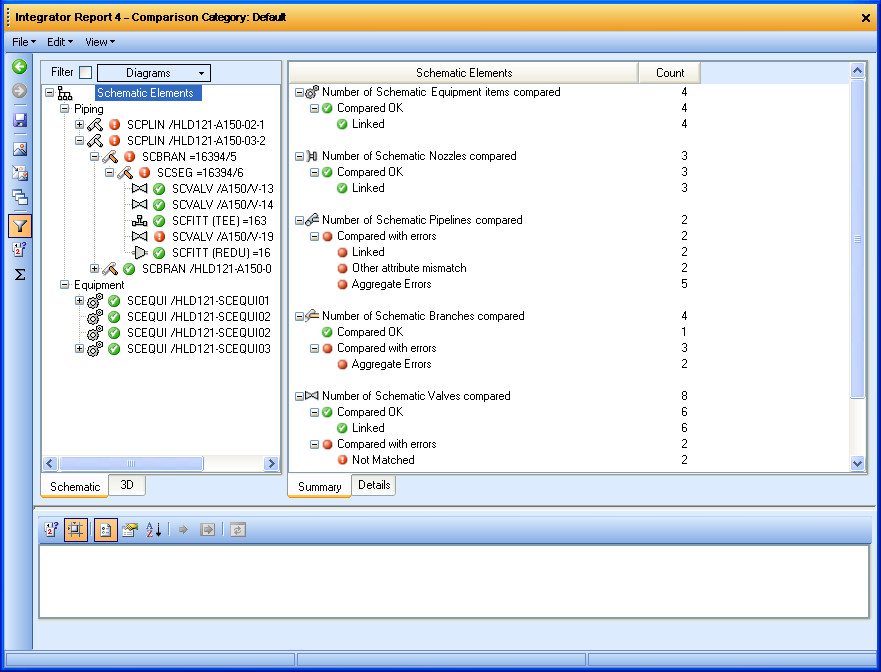

Figure 5:5.
Compare Diagram Report Initial View
Selecting the Details tab and then the owning schematic branch displays its detailed compare results in the Data panel.
•
The source and destination connections are listed (note that the schematic branch has a connection direct to a schematic equipment, but the pipe branch connects to a nozzle).

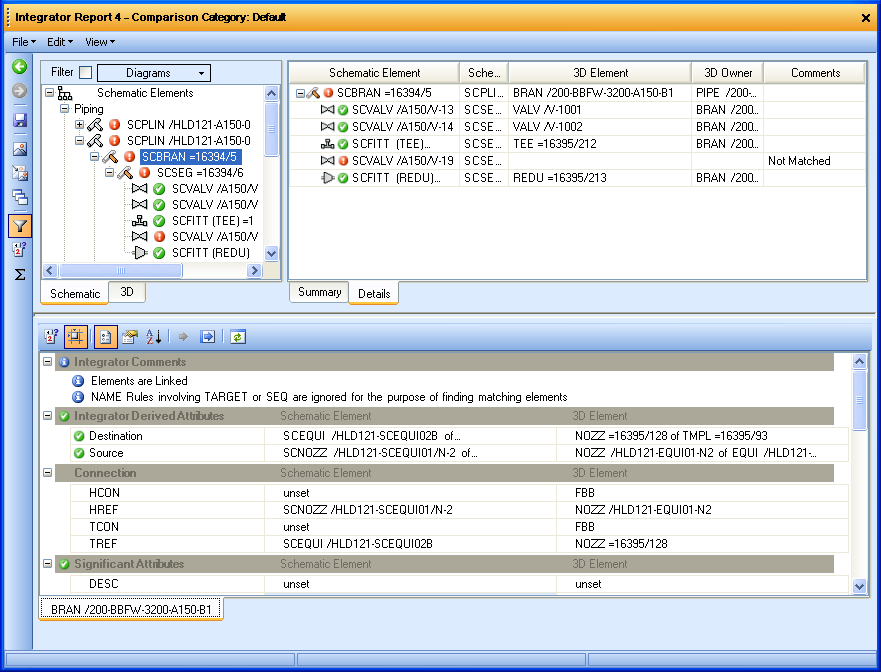

Figure 5:6.
Compare Report Data for SCBRAN
Selecting the valve shows its details.

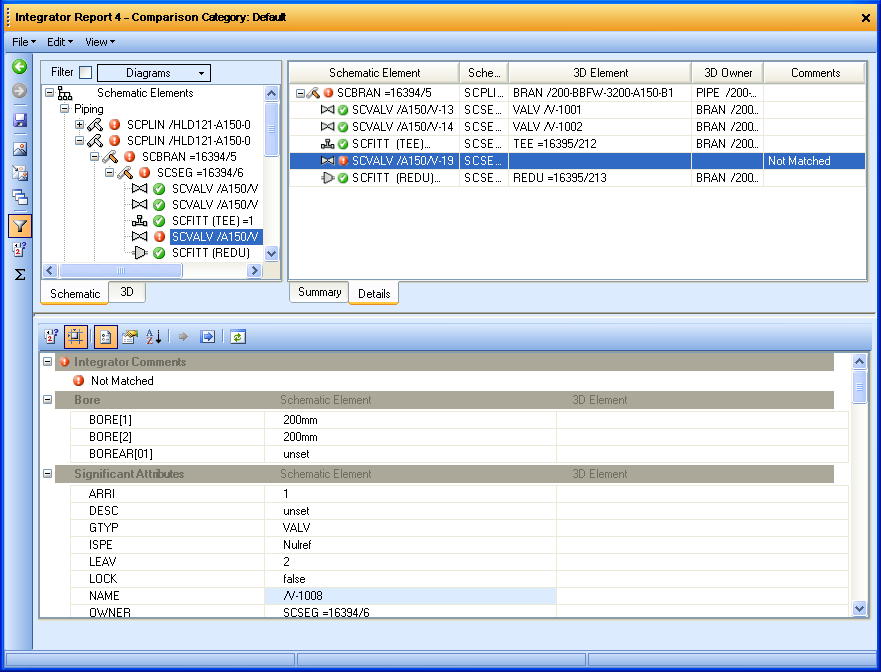

Figure 5:7.
Compare Report Data for SCVALV
Note:
The missing valve marked as Not Matched, and has no values in 3D.
Selecting a row in the Summary tab will cause the report to swap to the Details tab and filter the display to show only those rows appropriate for that selection (together with any owning hierarchy present in the report). The Summary filter button will be automatically switched on.

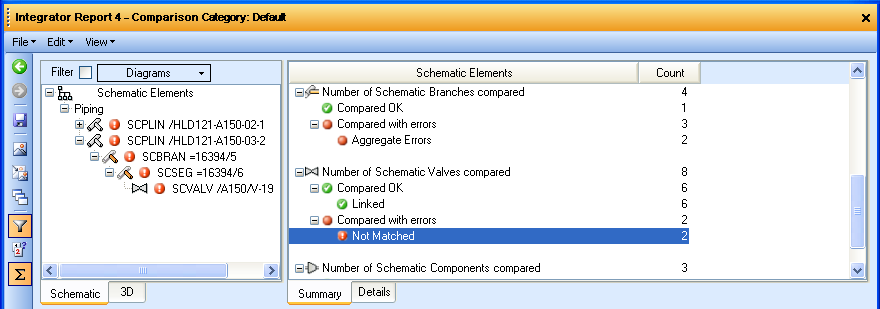

Figure 5:8.
Compare Report Summary

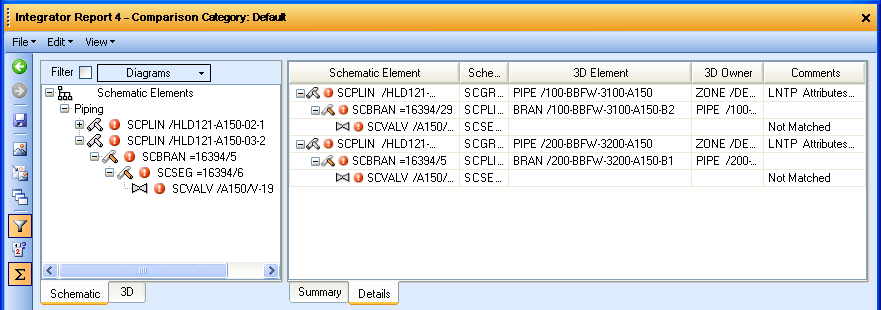

Figure 5:9.
Compare Report Details with Summary Filter
