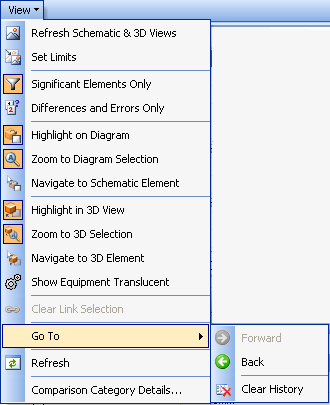

View Drop-down Menu

Schematic 3D Integrator User Guide

Figure 4:29.


Refresh Schematic & 3D Views	Re-apply the compare rules colours to the Diagram View and 3D View.
Set Limits	Sets the 3D View limits to encompass all the 3D objects in the report.
Significant Elements Only Differences and Errors Only	These two filters control which objects will be displayed in the Compare Report.
Highlight on Diagram Zoom to Diagram Selection Navigate to Schematic Element Highlight in 3D View Zoom to 3D Selection Navigate to 3D Element Show Equipment Translucent	These modal settings control how the Diagram View and 3D View will respond each time an object is selected in the Compare Report. Which Navigate mode will be used is determined by whether the Schematic or 3D tree panel is visible in the Compare report.
Clear Link Selection	Clear the selection of object for linking (see Comparison Report Context Menu).
Go To	Pages forward or backward.
Refresh	Update attribute values in the report from the database.
Comparison Category Details	Display the current settings for the Comparison Category used in the report (note these may have changed since the report was made).
