Multi-Discipline Supports
User Guide
Using the MDS Application : MDS Structural Associations : Associations Manager

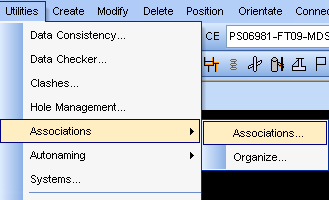

The standard AVEVA Associations Manager window is displayed by selecting the main menu bar option Utilities > Associations > Associations…, i.e.
|
Figure 2:18.
|
|
Figure 2:19.
|

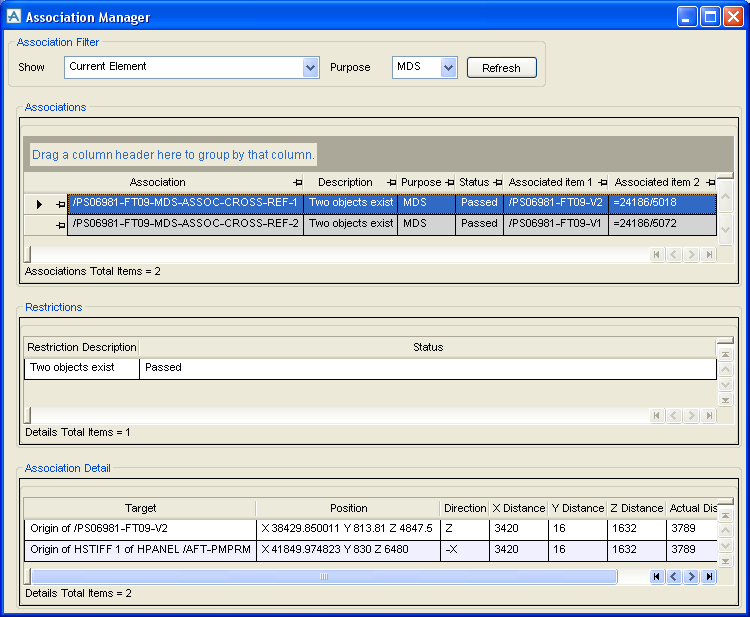

The Association Filter - Show option gadget has been changed to 'Current Element' and the Purpose option gadget has been changed to 'MDS'.
Clicking Refresh has populated the Associations grid with the associations for the current MDS framework support structure.
Clicking the left hand side of an association will automatically populate the other two lower grids, Restrictions and Associations Detail with the data of the selected Association.
Users should familiarise themselves with the standard AVEVA Associations window, described in Getting Started with Plant/Marine.
