Automatically Generated MDS Structural Associations
The MDS Structural Associations are created automatically during the creation/modification of a MDS standard framework support structure, when the creation mode used is Cursor or Clearance , and the user graphically identifies the main structural element(s) from which the MDS structure SCTN element(s) will be supported.

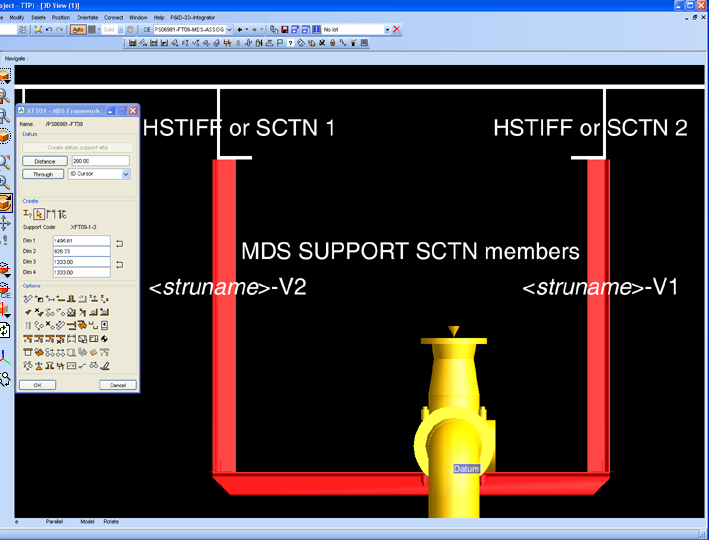

The figure below shows a typical MDS support created by Cursor :
Figure 2:12.
MDS Support created by cursor
The MDS Structural Associations are automatically generated for the MDS support, shown in the picture above, in a ASSOWL element created automatically and named to reflect the SITE name where the MDS supports are being created, i.e. the ASSOWL name will follow the convention <sitename>-MDS-ASSOWL.

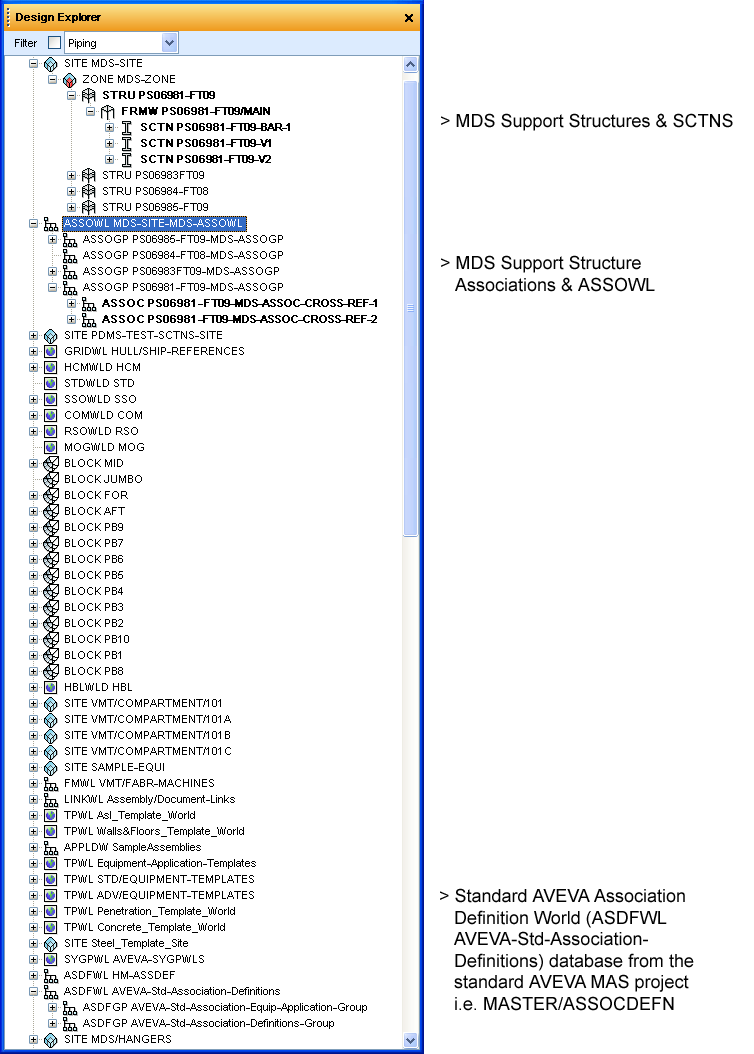

The figure below shows the typical hierarchy of the MDS supports ZONE and their structural associations ASSOWL:
Figure 2:13.
Typical MDS hierarchy
A similar hierarchy to one shown above would also exist for the automatically generated associations when creating the MDS Support by Clearance
