Multi-Discipline Supports User Guide
Using the MDS Application : Add a Packing Piece
Add a Packing Piece
Packing pieces are used to make up height differences between the cross bar and support attachments.
1.
Select the Add Packer icon from the MDS XFT09 window. The user is presented with the cursor and a status line prompt to identify the support atta to add the packing piece to. The Packing Piece window (Figure 2:10.: Packing Piece window) is displayed.
2.
Fill in the window as required.

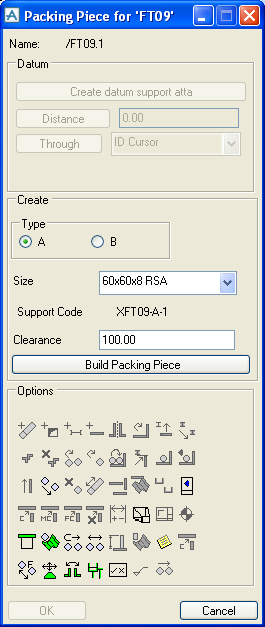

Figure 2:10.
Packing Piece window
