Parameters Tab

Multi-Discipline Supports Administrator Guide

MDS Ancillary Defaults Form : Parameters Tab

Figure 5:6.

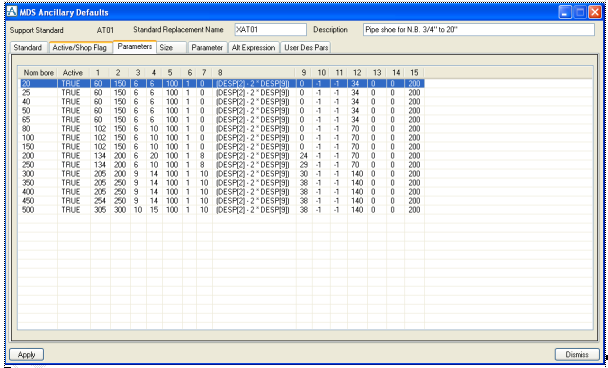

MDS Ancillary Defaults - Parameters Tab

The Parameters tab displays a table of the design parameters for the selected MDS ancillary for each bore size. The bore sizes that appear in this table are NOT dependent on the Active check box settings of the previous tab. The parameters listed here are for display purposes only (not editable). Parameters are changed in the Size tab.

The width of the columns can be altered by clicking and dragging the vertical column separator lines.

Selecting a row (by left-clicking) selects that bore size in the Size, Alt Expression and User Des Pars tabs. For example, when switching to the Size tab, that bore will already be selected, but can be changed using the Bore selection control.
