MDS Admin Data Form : Options (1) Tab : User Warning Angle (MDSPIVWARN)
This default is also associated with hangers and determines the angle above which a warning is displayed to the user. If the user attempts to support a section of pipe whose slope is greater than or equal to the MDSPIVWARN angle, an error is displayed but the user is allowed to continue with the design process.
|
Note:
|

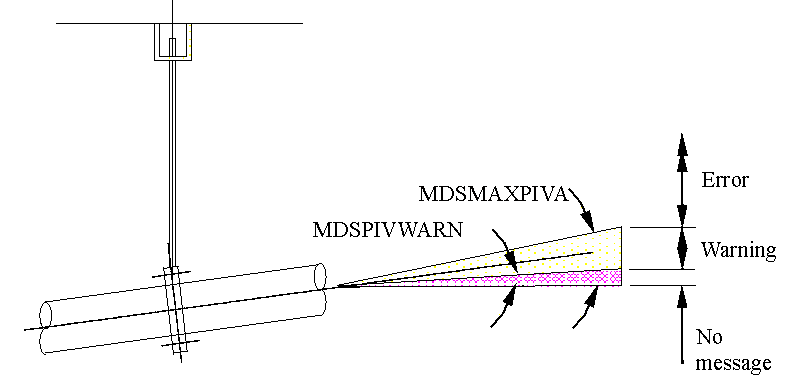

In the example given in Figure 3:8.: MDSMAXPIVA and MDSPIVWARN, the designer would have received a warning alert, as the slope of the pipe is greater than the MDSPIVWARN angle but less than the MDSMAXPIVA angle.
|
Figure 3:8.
|
MDSMAXPIVA and MDSPIVWARN
|
