MDS Admin Data Form : Options (1) Tab : Max. Horizontal Angle (MDSMAXHANG)
This default determines the maximum allowable angle in the horizontal plane with respect to the datum pipe centreline that a pipe can have in order to be added to a framework (see Figure 3:7.: MDSMAXHANG).
|

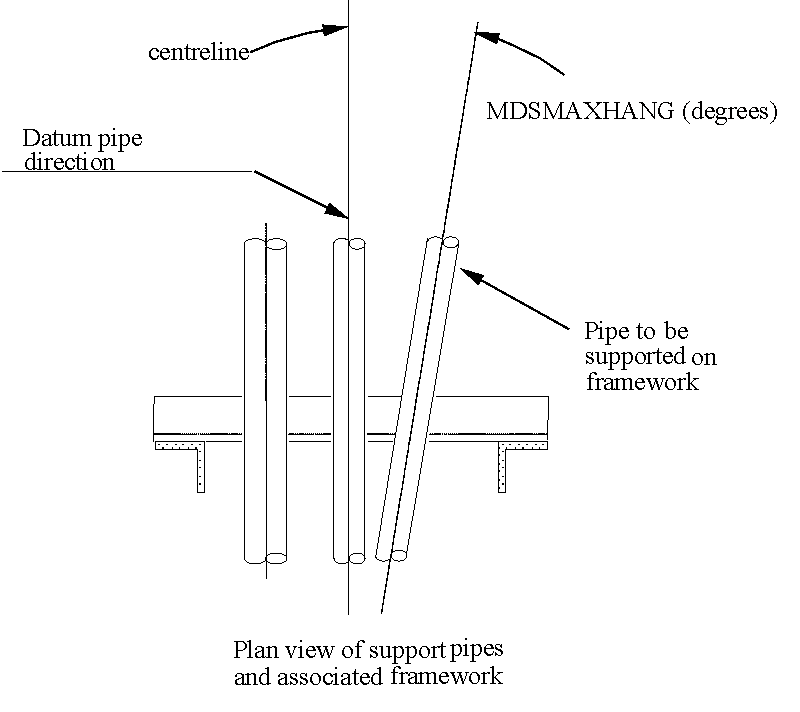

Figure 3:7.
|
MDSMAXHANG
|
