Multi-Discipline Supports Administrator Guide
MDS Admin Data Form : Options (1) Tab : Max. Packing Overlap (MDSPACKMO)
Max. Packing Overlap (MDSPACKMO)

Default value (mm)
Session/default catalogue modifiable
Description
5
Session
Maximum allowable packing overlap.

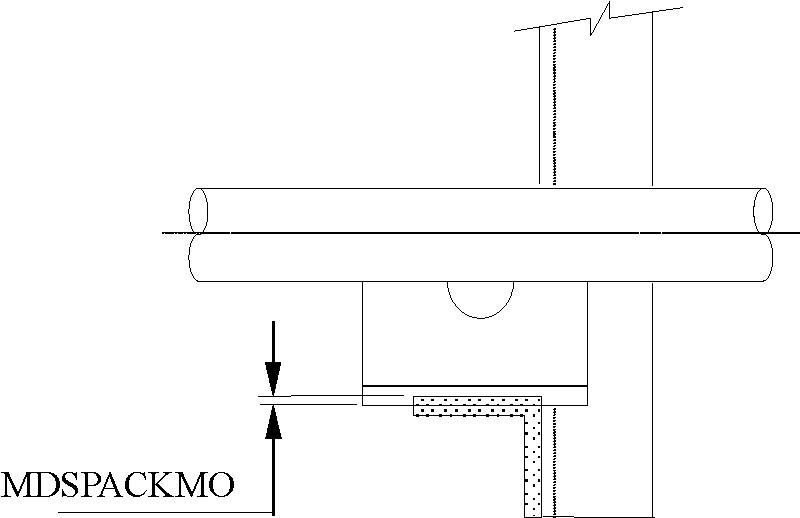

This is the maximum allowable overlap that can occur between a support attachment and its associated supporting steelwork (see Figure 3:5.: MDSPACKMO).
Figure 3:5.
MDSPACKMO
