Multi-Discipline Supports
Administrator Guide
MDS Admin Data Form : Options (1) Tab : Max. Pipe Slope (MDSSUPPMS)
This is the slope value above which MDS creates a framework type support perpendicular to the pipe (see Figure 3:2.: MDSSUPPMS slope > 1/10). Below this slope value, MDS allows the pipe to sit at an angle relative to the vertical framework (see Figure 3:3.: MDSSUPPMS slope < 1/10).
|

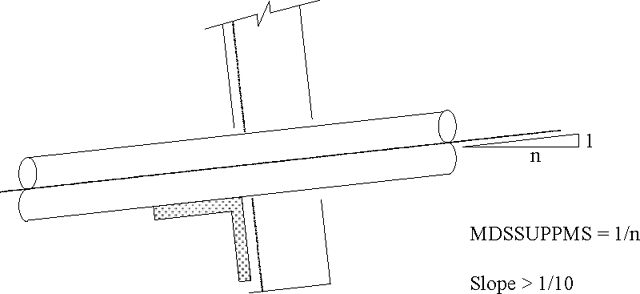

Figure 3:2.
|
MDSSUPPMS slope > 1/10
|
|

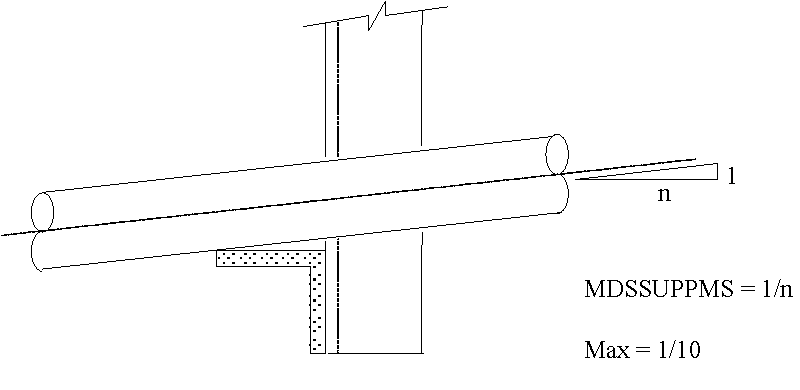

Figure 3:3.
|
MDSSUPPMS slope < 1/10
|
