Database Views Editor : View Detail : View Properties
The View Properties tab is populated with the information which defines the display name and description for the Database View. As well as the element selection criteria for the data rows. By default the View Properties tab is selected.
The user can now modify the primary attributes of a Database View and the elements that the Database View rows are based on.
|
The display name for the Database View, the name needs to be unique or the Database View will be listed with a derived name of the form Tablen. The display name is displayed at the top of the View Detail pane by the padlock for easy reference
|
|
|
A description of the Database View.
|
|
|
The types of the elements to include in the Database View.
|
Attribute filters restrict the contents displayed in the Database View to only the elements that meet the stated criteria. For a filter to be active it must have the Attribute Operator and Value columns completed.
To display the Attribute filters, from the Attribute filters part of the View Properties tab, click Expand. All the elements that meet the criteria of the Attribute filters are displayed.
Pseudo attributes and hidden attributes are not displayed in the right click drop-down menu on the Attribute column but can be entered in the Attribute cell.

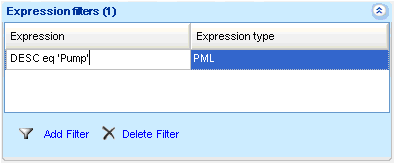

Expression filters restrict the contents displayed in the Database Views to only the elements that meet the stated criteria. For an expression filter to be active it must have a valid expression that evaluates to a Boolean/LOGICAL result.
From the Expression filters part of the View Properties tab,click Expand. All the elements that meet the criteria of the Expression filters are displayed.
