DRAW Reference Manual

Point and Line Construction : Chamfer Lines

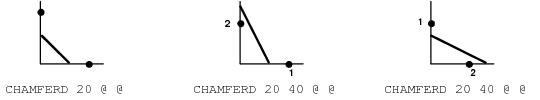

Figure 19:21.
Note:
in the above example the effect of changing the order in which the lines to be chamfered are identified. (The same effect could be achieved by leaving the order of identification unchanged but switching the chamfer distances values in the command.) If a single value is specified, this is used for both chamfer distances.
