DRAW Reference Manual
Labelling : Creating and Manipulating Labels : Label Frame Manipulation
Label Frame Manipulation
The Label frame may be drawn or omitted. This is controlled by the LFRAme attribute:
LFRA ON
LFRA OFF
The appearance of the frame is controlled by the LFSTYLe and LFCOLOur attributes. For example:
LFSTYL DASHEDMED
sets the frame linestyle to DASHEDMEDIUM
LFCOLO 4
draws the frame in colour 4
Refer to Colours and Styles for further information about linestyle and colour functionality.

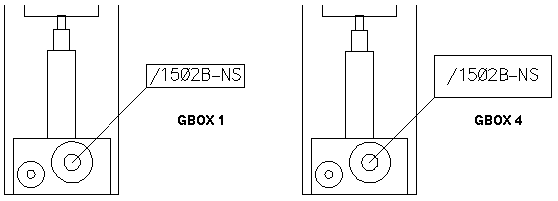

The clearance between text and frame is controlled by the GBOX attribute (default 1mm). Figure 12:5.: Frame Clearance shows the effect of changing GBOX from 1mm to 4mm.
Figure 12:5.
Frame Clearance
