Surface Treatment Report

Common Functionality User Guide

Data Check : Surface Treatment : Surface Treatment Report

Once the surface treatments have been assigned to the required Design elements, the inside and outside surface area for each component can be calculated and reported on.

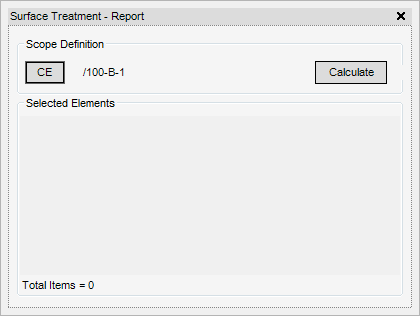

With the required element as the CE, on the Tools tab, in Tools group, click Surface Treatment, select Treatment Report from the drop-down list to display the Surface Treatment – Report window.

When the Surface Treatment - Report window is loaded, the CE is set automatically. Navigating to another element within the Model Explorer. Click CE to set that as the current CE for the Surface Treatment - Report window.

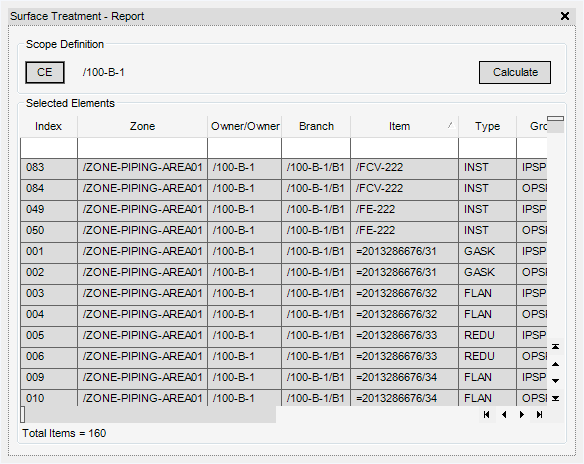

Click Calculate to calculate the inside and outside surface area for each component owned by the CE and displays the results in the Selected elements grid.

Note:

The Units for Area displayed derive from the current session units for Distance, as defined in the units setting window. Refer to Units for further information.

Once the user has selected items from the Selected elements grid, right-click in the grid to display a pop-up menu which has the following options:


Add to 3D view	Adds the selected elements to the 3D view.
Remove selected list in Grid	Removes the selected items from the grid.
Remove all list in Grid	Clears the grid.
Export to Excel	Prompts the user to browse to a file location and save the grid as a Microsoft Excel, .xls file and then saves the file to the selected location.
Print Preview	Opens the standard Print preview box allowing the page setup to be defined and the grid printed.
