Common Functionality
User Guide

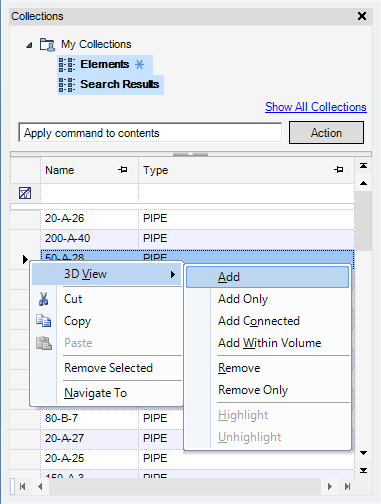

On completion of the search the Search Tool automatically opens the Search Results table in the Collections window and populates the table with the search results.
|
Note:
|
If the Collections window displaying the Search Results is closed, then it can be opened at any time, on the Home tab, in the Navigate group, click Collections to display the Search Results.
|
The Search Results table contains a grid control. The user can specify the columns that are displayed, each column represents an attribute or a valid expression of an item in the system.
The user can select either one or more rows in the Search Results window and perform specified actions on this data. For example, within MODEL, the user can drag & drop one or more items into the 3D graphical view. All menu actions can be specified within the AVEVA customisable menu builder application.
