Design Aids : 3D Construction Aids : Aid Copy/Move Mirror

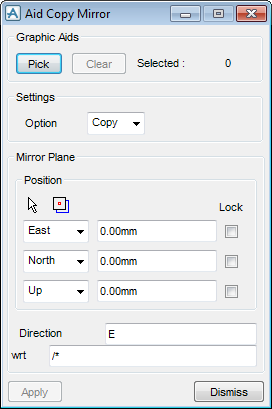

The Aid Copy Mirror window allows the user to create a copy of aid constructs, singly or in groups and mirror the copy in a specified plane.
From the 3D Aid Constructs window select Create > Copy > Mirror to display the Aid Copy Mirror window.
When the window is displayed, event-driven graphical picking is operative. Pick the aid element(s) to be copied and/or mirrored (pick an element again to remove it from the group); press Esc on the keyboard when the user has finished. The selected aids is highlighted in the 3D View.
|
Click Pick to start picking a new group.
|
|||
|
Click Clear to clear the selected pick.
|
|||
|
Defines the reflection plane in terms of its direction (normal to its surface) and a position through which it passes. Either enter the Position (East, North, Up) coordinates and if required, select one or all of the Lock check boxes to fix the current co ordinate along the axis) and Direction explicitly, or derive them from existing design items as follows:
|
|||
|
|||
|
|||
|
|||
|
The With Respect To (wrt) text box allows the selection of co-ordinates with respect to any design element.
|
Click Apply to create the copy, or executes the move, but confirmation is required to retain the change. Click Dismiss to cancel the copy or the move.
