Check Connections

Cable Design User Guide

If the user needs to check cableway branch connections, select Check Connections from the Branch Tasks window, to display the Cableway Branch Connections window.


Select	Select from a drop-down menu of four options: Current Branch Current Cableway Current Zone Current Site
Tag	Selected
	Connected
	Unconnected
	Errors
	All
	Remove all
Branch Connections	Lists the branch connections for the selected option.
Connected To	Shows whether a branch connection is connected to another branch.
Status	Shows the status of the connection as either OK or Error.
Messages	Displays a message informing the user whether or not the connections are correct at this point in the modelling process.

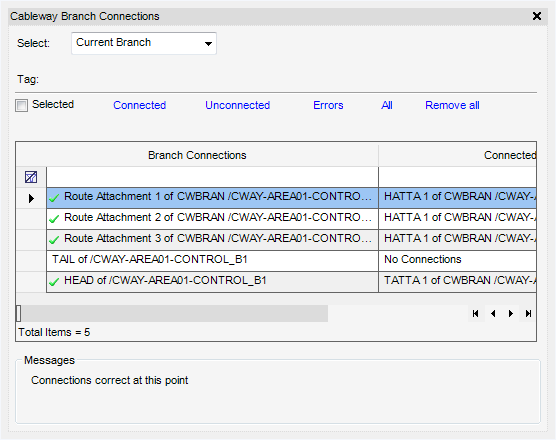

If no connection errors are found, green ticks will be displayed in the Cableway Branch Connections form. A message Connections correct at this point is also displayed on the form.

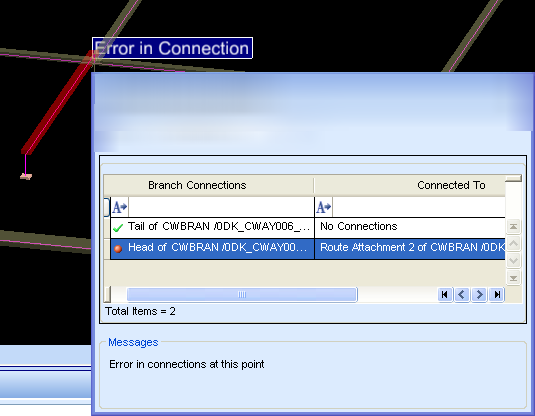

If connection errors are found, red balls will be displayed in the Cableway Branch Connection form. A message Error in connections at this point is also displayed on the form. The connection errors will also be highlighted in red in the 3D view.
