Show Linked Objects

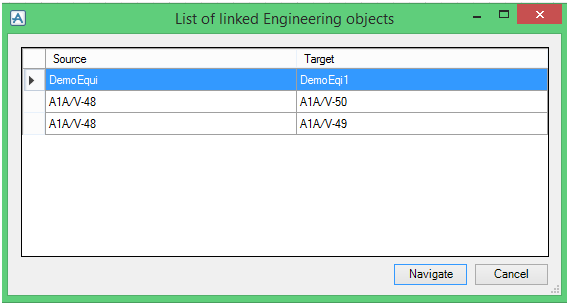

Show Linked Objects
is present in right click options in any diagram. It lists all the linked items in the current diagram.
The
Navigate
button will highlight the linked elements in the diagram associated with the selected source.
