In Diagrams, each drawing shape may be assigned to many or no layers. Layers are defined by their names and basic properties.

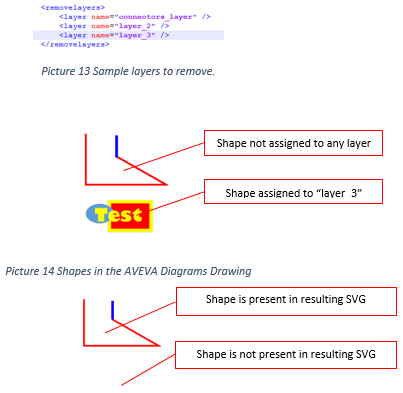

Diagrams Gateway provides functionality to remove layers from published drawing shapes. If a shape was assigned to only one layer, which has been defined do be removed, it will not be present in the resulting published drawing. The example below shows this behaviour:
