Presentation Mapping
Some properties of
Diagrams
drawings can be modified while publishing by using presentation mapping xml file.

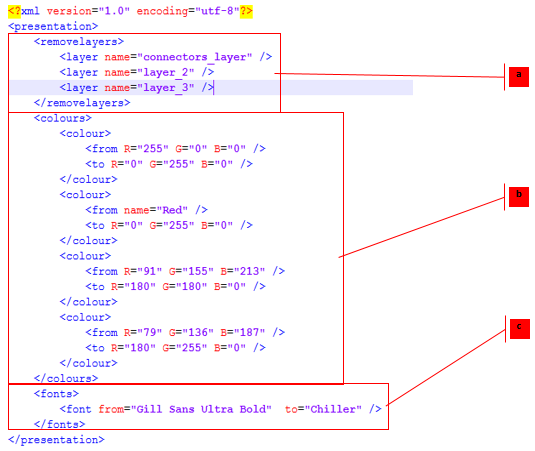

There are three types of functions in
Presentation Mapping
that
Diagrams Gateway
supports:
removelayers
allows to specify layers in Diagrams drawing of which shapes will be removed in the published drawing.
colours
allows to replace colours with other colours in the published drawing.
fonts
allows to replace used fonts which are used in the drawing when publishing.
