Diagrams
User Guide
|

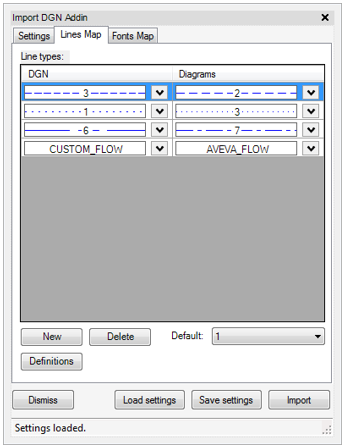

Figure 10:19.
|
|
•
|
Line types - maps DGN line style to diagrams line patterns.
|
|
•
|
New - adds/removes mapping row.
|
|
•
|
Delete - deletes selected mapping row.
|
|
•
|
Default - sets default line pattern that will be used for line styles that are not mapped.
|
|

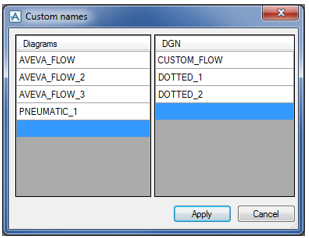

Figure 10:20.
|
