DGN Import
DGN Import add in is designed for importing 2D DGN files to Diagrams.The DGN Import tool is available in Project Tab > Import and in Export > Import > DGN Import.

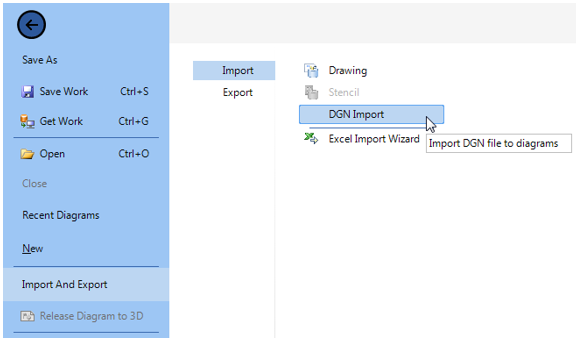

Figure 10:17.
Import DGN option in Diagrams menu
The import window has four operating buttons and three tabs:

Operating buttons

Dismiss
Closes the DGN Import window.
Load
Loads settings from DgnDiagramsImportSettings.xml file.
Import
Starts the import.
