Sub-Components

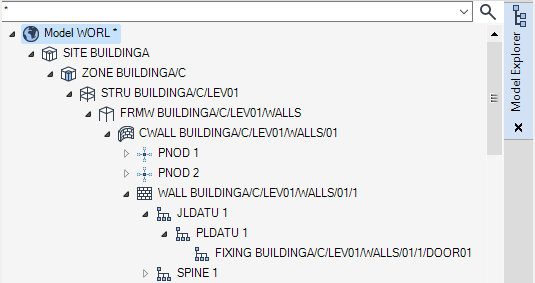

In the Building Applications window sub-components are found below the owning element. In this example, the Door sub-component is owned by a straight wall.
Sub-component elements use SBFI and FIXING elements to represent the physical geometry. Sub-Fitting elements are used with straight walls and floors, while Fixing elements are used in curved walls, general handrails.
