Modify
Modify
The tasks that the user would carry out with the modification of a stair, ladder or handrail elements are initiated from central Modification windows which acts as a task hub. (Modification functionality for individual components of handrail elements is available, for more information, refer to
Components
).
The functionality available for selection in the
Modify
group of the
Stairs, Ladders, Handrails
tab is identical to that available in the Create sections of this user guide.

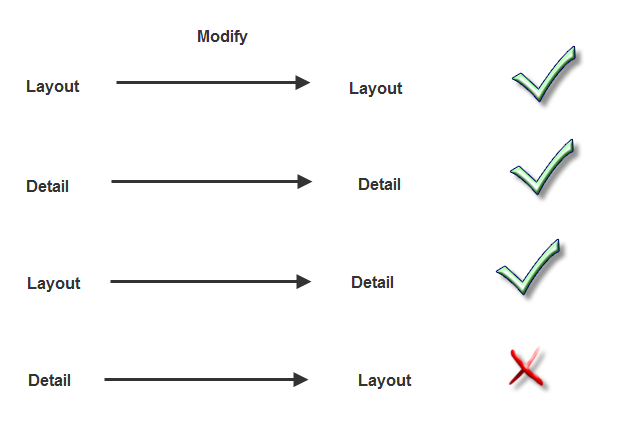

The user can modify stair, ladders, or handrail elements created in the following representation modes:
For example: Layout stair flight, handrail(s) or rung ladder can be modified into a Detail representation, but not the other way round.
