Panelled Handrails
Panelled assembly handrails are available for selection, the panels are sized and positioned along the selected route path.

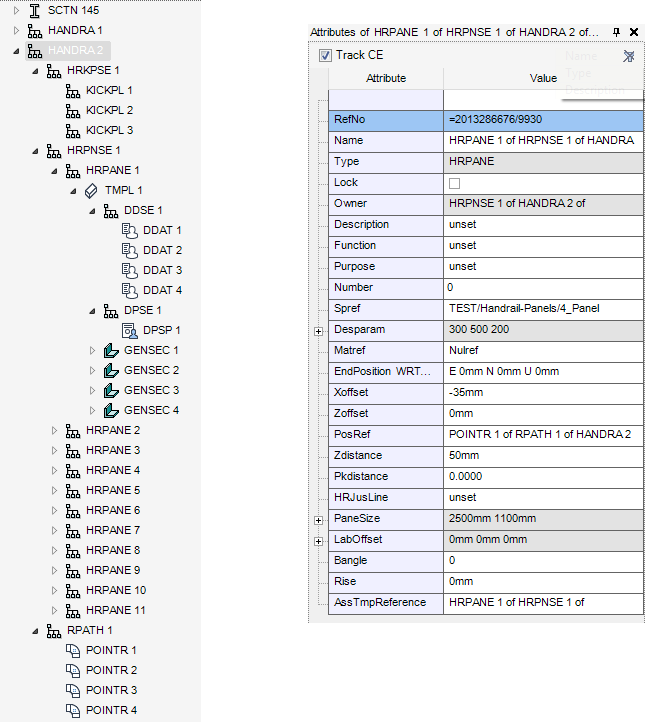

Panelled Handrails Hierarchy
Dependent upon the dimensions of the panel assembly, SLH attempts to fit one panel assembly on the route path, then fits further panel assemblies in the remaining space along the route path.
From the
Panelled Handrail
part of the
Handrail Details
window, the user can display the component dimensions of the assembly in the 3D view.
Note:
Some panel handrail dimensions are derived from the assembly.

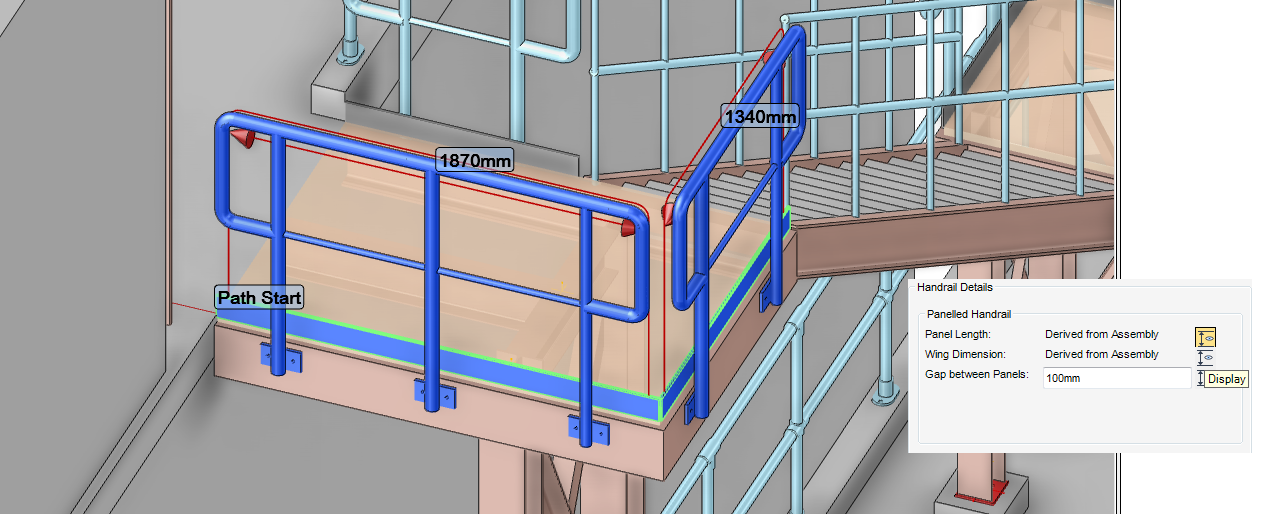

Panel Length:

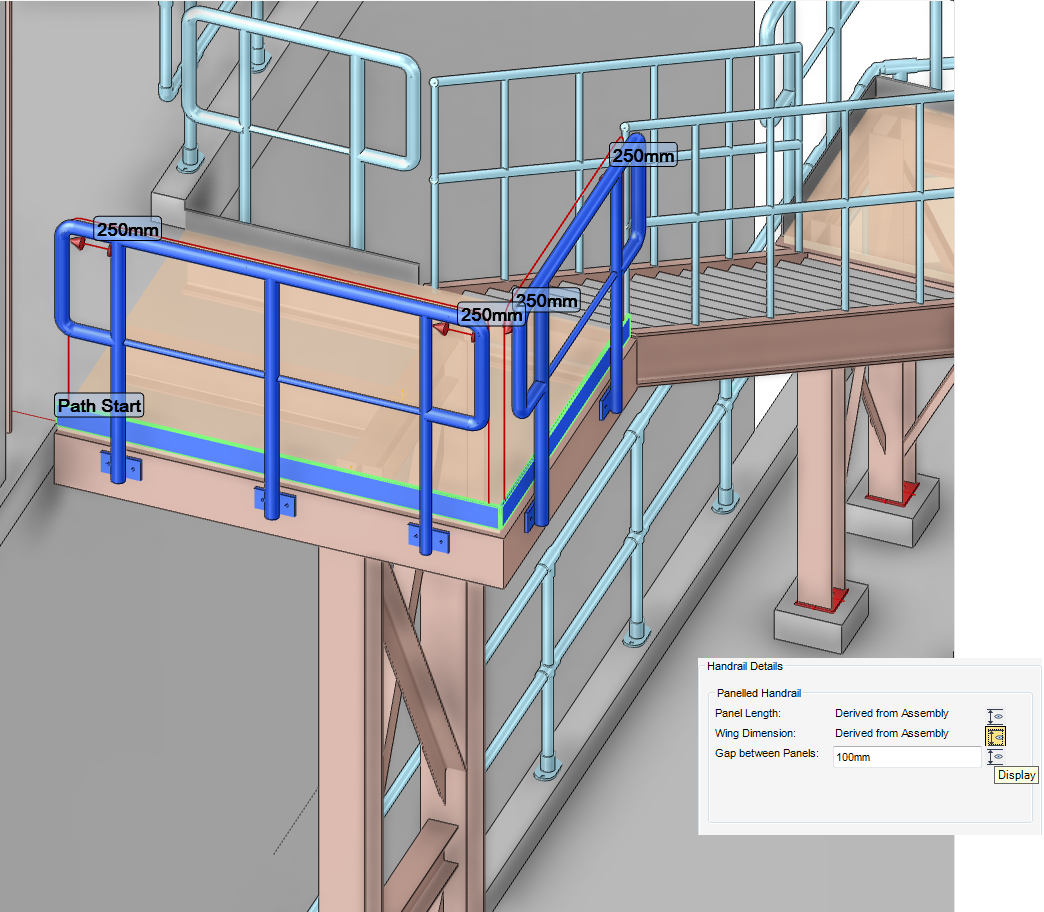

Wing Dimension:
Gap between Panels:
