Structural Design User Guide
Rung Ladder : Layout Rung Ladder Hierarchy
Layout Rung Ladder Hierarchy

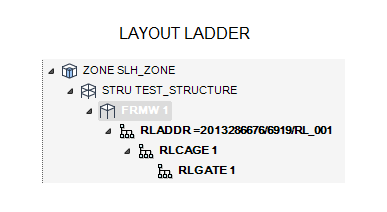

When the RLADDR element is created in the layout mode, below the administrative SLH elements, the RLADDR specific elements are:
RLADDR
The Rung Ladder element (RLADDR) is a top level SLH administrative element owned by other structural administrative elements i.e STRU, FRWM and /or SBFR.
RLCAGE
The RLCAGE element is an administrative element which owns the Cage Segment (CAGSEG) element.
RLGATE
The RLGATE element represents the gate on the rung ladder.
Note:
In the Layout Mode, the RLADDR element has no assemblies.
