Structural Design User Guide

Panel Fittings : Compound Fittings : To Create a Compound Fitting

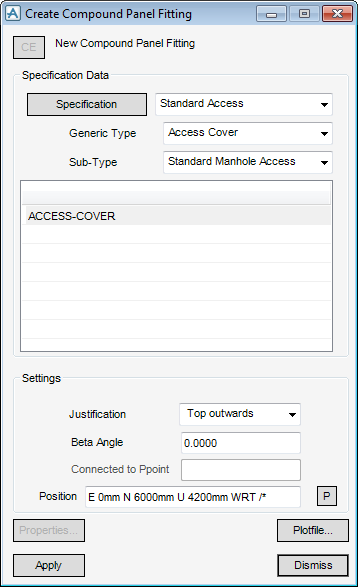

On the Plates tab, in the Create group, click Fittings, select Compound Panel Fitting from the list to display the Create Compound Panel Fitting window.
The functionality of the Create Compound Panel Fitting window is identical to the Create Panel Fitting window, For more information, refer to Single Panel Fitting.
