Section Tools
: Material
Material
The user can change the material of the selected element irrespective of the default specification material.
,
On the
SECTIONS
tab, in the
Tools
group, click
Material
to the

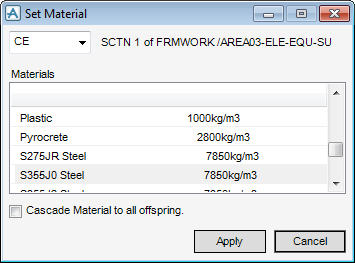

Set Material
window is displayed.
From the drop-down menu select the element to be modified. It can be the CE, selected from a Collection or picked with the cursor in the 3D view.
If the
Cascade Material to all offspring
checkbox is selected, any associated items (for example: fittings) have their material changed as well.
From the
Materials
list, select the material, click
Apply
to change the material.
Click
Cancel
to discard any information and close the
Set Material
window.
