Structural Design
User Guide
Section Tools
: Flip
Flip

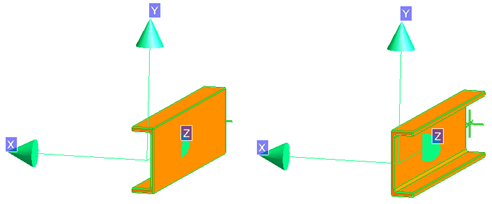

Enables the user to change the orientation of sections by exchanging the Start and End positions, that is, the Z direction of the section is orientated through 180º. This only really affects asymmetrical sections such as angles and channels although it may be applied to all section profiles.
On the
SECTIONS
tab, in the
Tools
group, click
Flip
, the user is prompted to ‘
Identify section to flip
’, press
Esc
, the Z direction is orientated through 180º.
