Modify Walls and Floors
: Negative Extrusion
Negative Extrusion
The functionality to modify the negative extrusion of the floor element, on the
WALLLS AND FLOORS
tab, in the
Modify
group, click
Floor
, select
Negative Extrusion

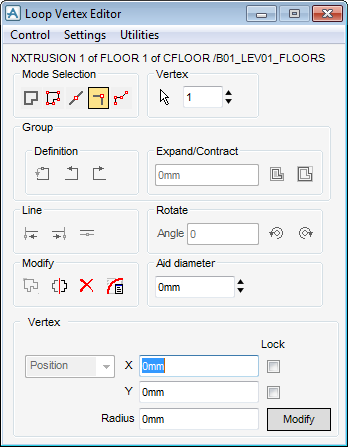

from the drop-down list to display the
Loop Vertex Editor
window.
For a description of the functionality available to the user, refer to
Modify Panels
for more information.
