Modify Walls and Floors : Justification

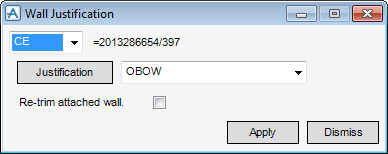

Make the wall to be modified the CE and select Modify > Wall > Justification from the main menu toolbar to display the Wall Justification window.
To change the justification select the required Pline justification from the drop-down menu. Refer to Specification for the wall pline locations.
To select the justification manually from the graphical display click Justification, the user is prompted to ‘Identify Pline to justify to.’, select the pline using the cursor.
To maintain attachment to an attached wall select the Re-trim attached wall checkbox.
Click Apply to make the changes or click Dismiss to discard any inputs and close the Wall Justification window.
