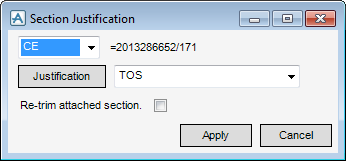

The Modify Section Justification functionality can be used to modify the attributes of a GENSEC. From the SECTIONS tab, in the Modify group, click Section, select Justification from the drop-down list to display the Section Justification window.The Section Justification window is displayed in an inactive state before the section pick is completed.

To select the justification manually from the 3D graphical display click Justification and the prompt ‘Identify Pline to justify to.’ appears. Select the pline with the cursor.

To maintain attachment to associated sections select the Re-trim attached section checkbox.

Click Apply to make the changes or click Cancel to discard any inputs and close the Section Justification window.
