Structural Design
User Guide
Modify Sections : Modify Sections Specification
The user can if required, modify the specification of a selected section, from the SECTIONS tab, in the Modify group, click Section, select Specification from the drop down list to display to the Section Specification window.
To modify a section’s specification, the user must select the section to be modified. From the Section Specification window, select from the drop down menu:
|
Select the section in the 3D view using the cursor, the user is prompted to ‘Section(s) using Cursor’
|

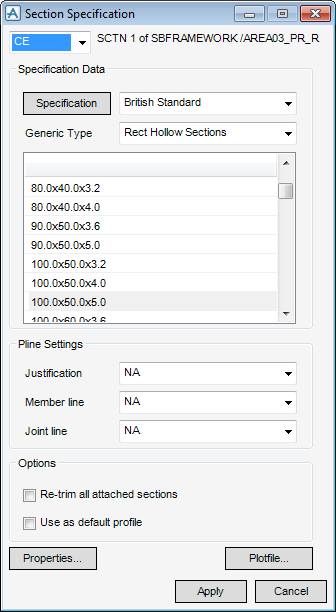

From the Specification Data part of the Section Specification window, the specification of the section can be modified.
Select Specification to display and populate the Specification Data part of the Section Specification window with the current specification of the selected section. Modify the specification as required.
The Options part of the Section Specification window, allows the user to automatically re-trim all attached sections and use the default profile.
Click Properties to display the editable properties of the section.
Click Plotfile to display a graphical representation of the section.
Click Apply to accept the changes or click Dismiss to discard any information and close the Section Specification window.
